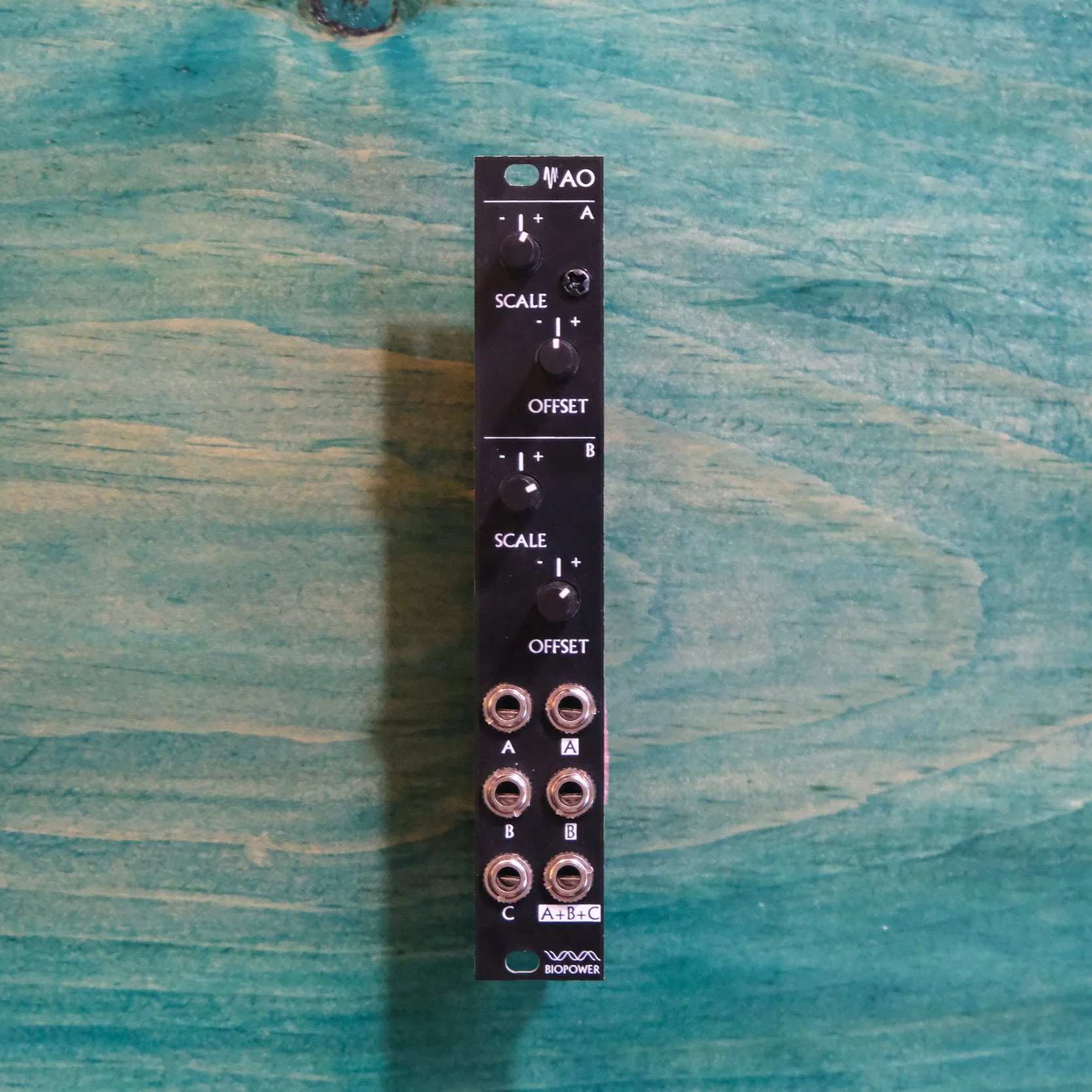

AOrta is a flexible intersection for your Eurorack CV. It provides two channels ofattenuverters and offsets and can mix these with a third channel at unity gain.

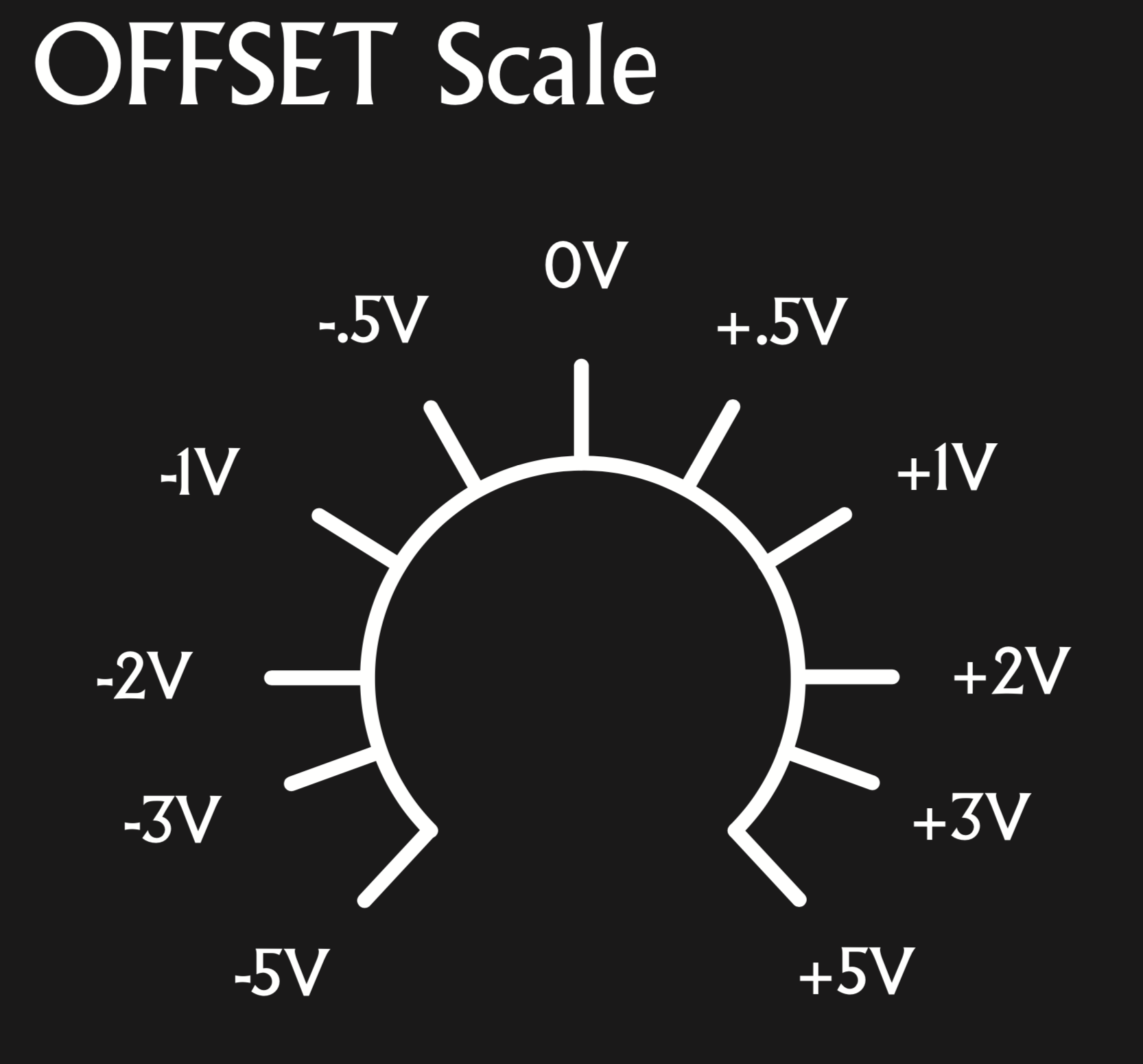

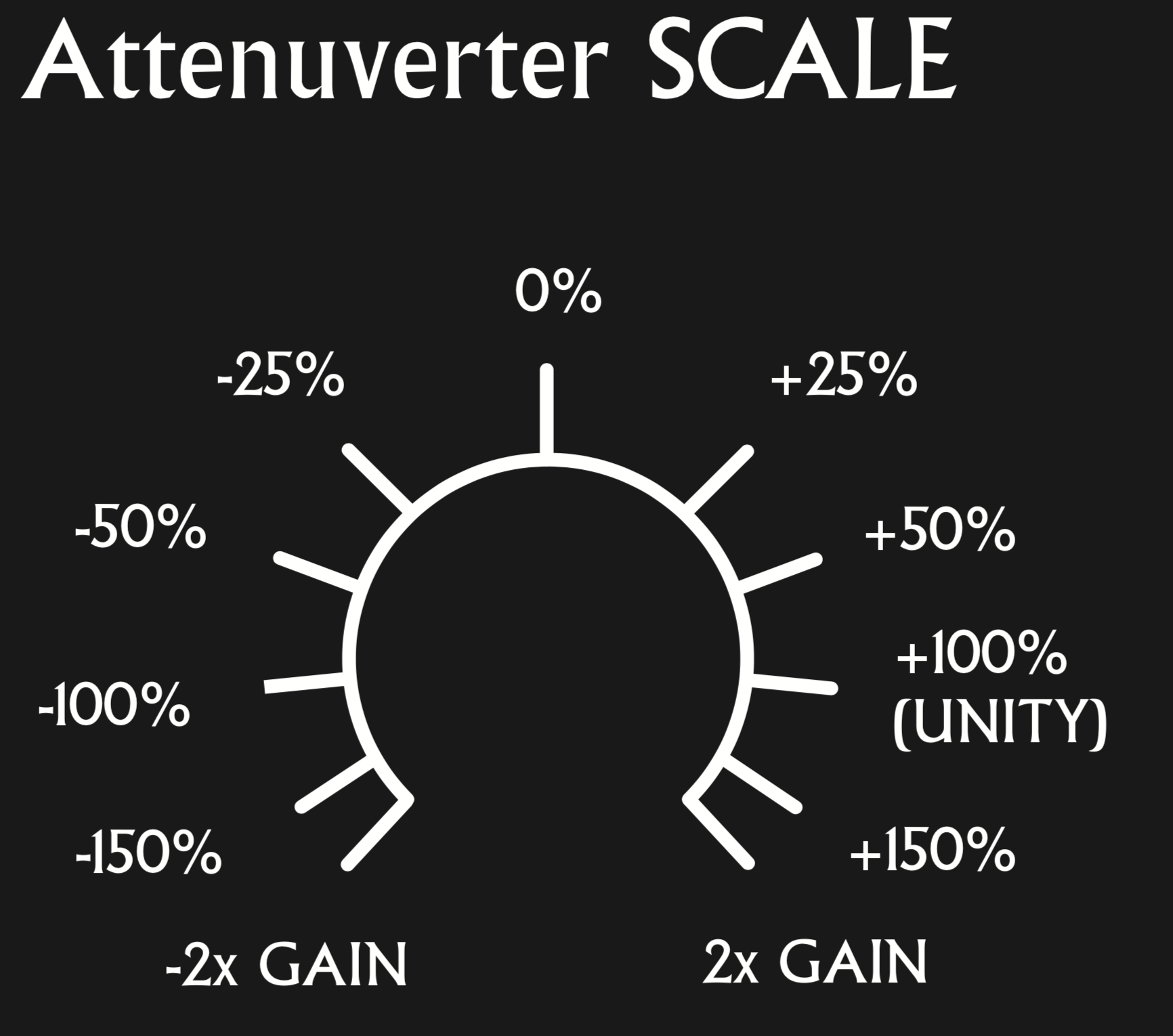

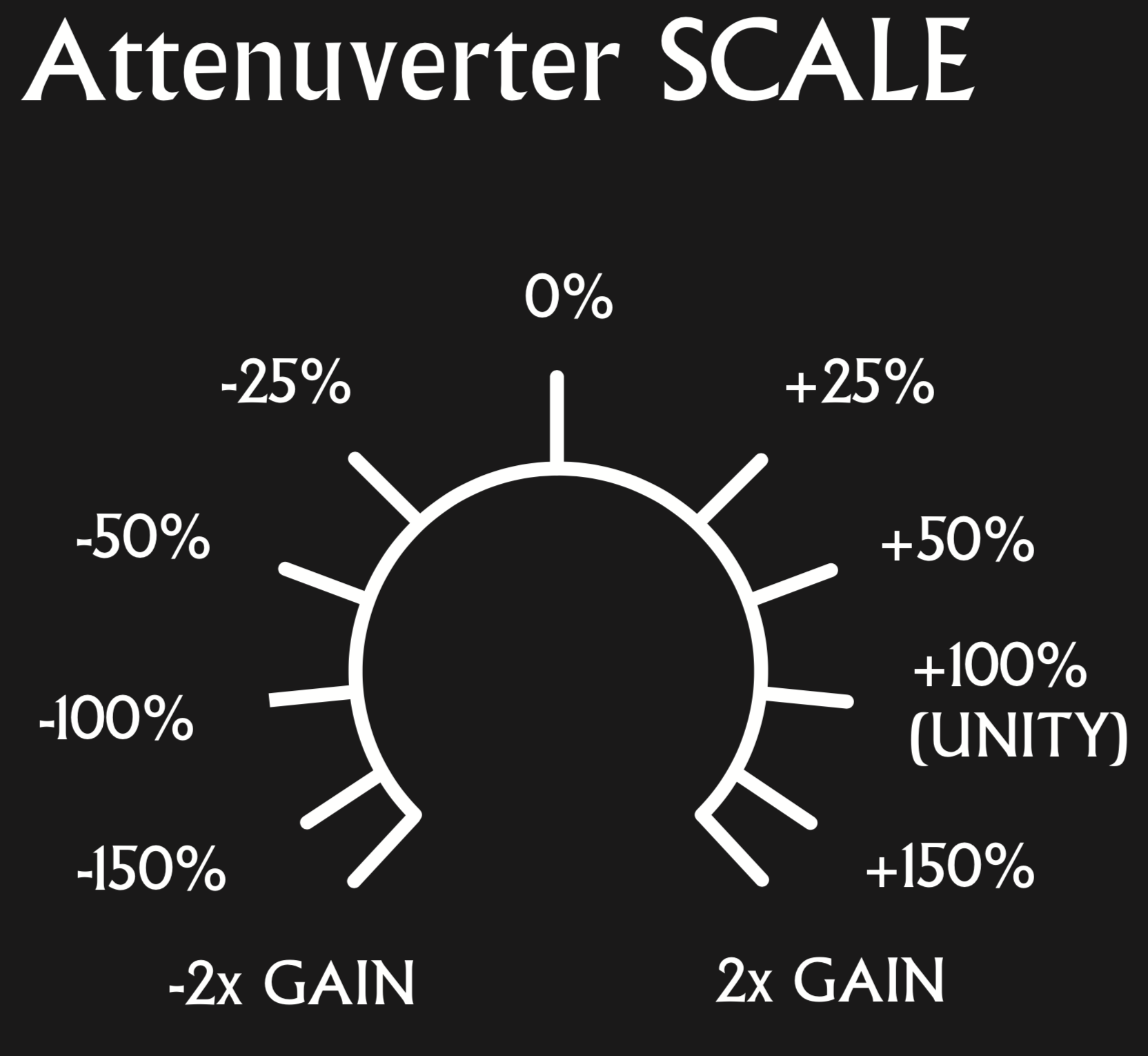

Channels A and B can invert, attenuate or amplify signals from -2x gain through 0 to +2x gain. The signal is then added to a -5V to +5V offset.

Controls use an exponential scale to optimize fine-tuning for subtle modulations or pitch CV.

B In is normalled to A In. Patching A Out removes it from the A+B+C mix.

Width: 4 hp

Depth: 21 hp

Current draw: 15 ma

AO is a companion module to the CEREBELLUM logic matrix
