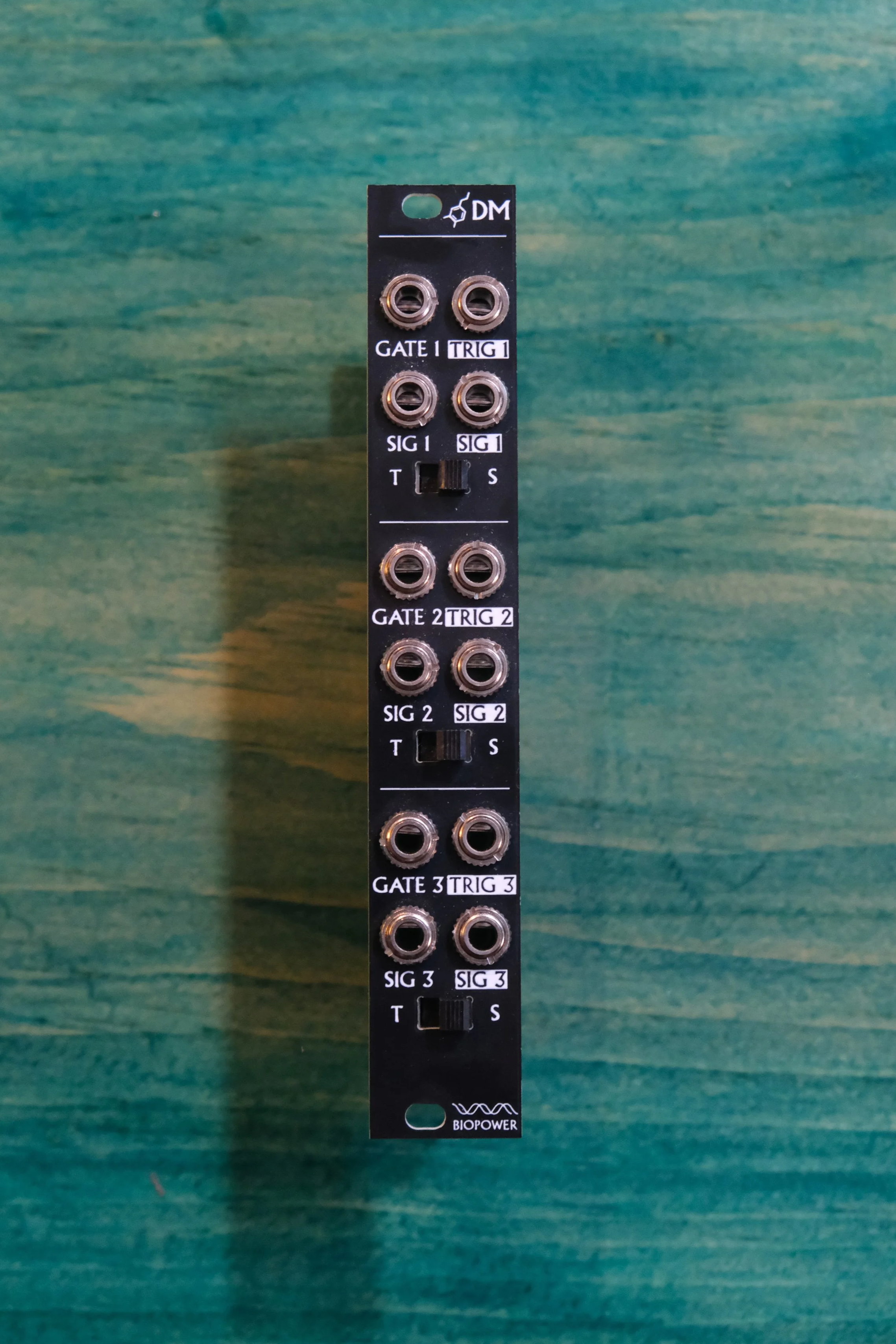

DM (Dopamine) uses gate rhythms to freeze the variable signals of your Eurorack patch. It was designed as a companion to the Cerebellum logic matrix.

It provides three channels with gate-to-trigger converters (5 ms on the rising gate) and track- or sample-and-hold circuits.

Switches permit users to choose between tracking (using gates) or sampling (using triggers) behavior on the fly.

GATE 2 is normaled to GATE 1 and GATE 3 to GATE 2. Likewise, SIGnal 2 is normaled to SIG 1 and SIG 3 to SIG 2. This allows the creation of musically interlocking patterns with fewer inputs.

SIG 1 is normaled to +/- 5V white noise, which allows the creation of random voltages on all three channels.

Width: 4 hp

Depth: 34 mm

Current Draw: 30 ma

DM is a companion module to the CEREBELLUM logic matrix
